Grade 8.8 DIN933 Hex Head Bolt Black Oxide DIN 933

Grade 8.8 DIN933 Hex Head Bolt Black Oxide DIN 933

Short Description:

Standard: DIN933

Product Name: Hex Head Bolt Black Oxide

Key Words: DIN 933, 8.8 Grade

Size: M3-M42

Material: 10B21, 35K, 45# steel

Stength Grade: 8.8 Grade

Surface Treatment: Black Oxide

Thread Length: Full Thread

Thread Type: Coarse/Fine

Packing: Bag/Carton/Wooden case

Other Features: Offer customized head mark.


Product Detail

Product Tags

Description

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

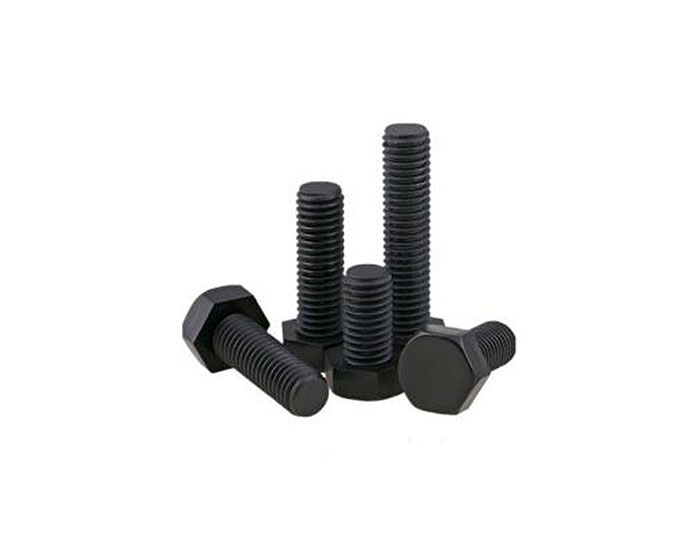

Yongnian Hongji3

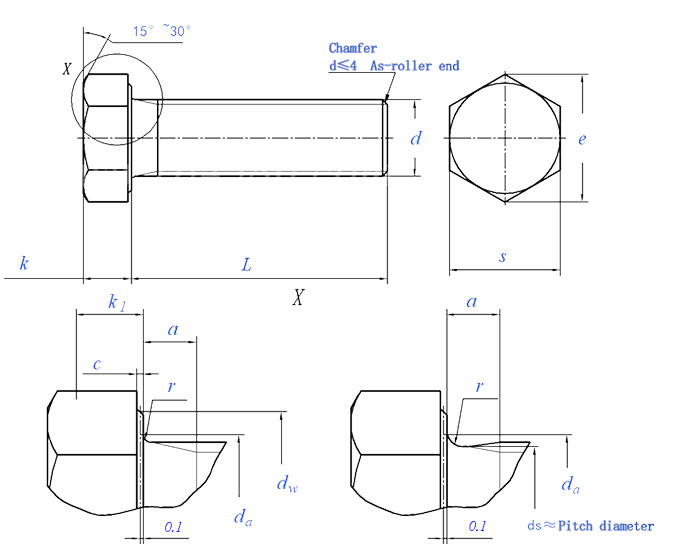

Yongnian Hongji2

d

M1.6

M2

M2.5

M3

(M3.5)

M4

M5

M6

(M7)

M8

M10

M12

(M14)

M16

P

Pitch



0.35

0.4

0.45

0.5

0.6

0.7

0.8

1

1

1.25

1.5

1.75

2

2

a

Max



1.05

1.2

1.35

1.5

1.8

2.1

2.4

3

3

3.75

4.5

5.25

6

6

c

Min



0.1

0.1

0.1

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.15

0.2

Max



0.25

0.25

0.25

0.4

0.4

0.4

0.5

0.5

0.5

0.6

0.6

0.6

0.6

0.8

da

Max



2

2.6

3.1

3.6

4.1

4.7

5.7

6.8

7.8

9.2

11.2

13.7

15.7

17.7

dw

A Class

Min

2.4

3.2

4.1

4.6

5.1

5.9

6.9

8.9

9.6

11.6

15.6

17.4

20.5

22.5

B Class

Min

-

-

-

-

-

5.7

6.7

8.7

9.4

11.4

15.4

17.2

20.1

22

e

A Class

Min

3.41

4.32

5.45

6.01

6.58

7.66

8.79

11.05

12.12

14.38

18.9

21.1

24.49

26.75

B Class

Min

-

-

-

-

-

7.5

8.63

10.89

11.94

14.2

18.72

20.88

23.91

26.17

k

Nominal



1.1

1.4

1.7

2

2.4

2.8

3.5

4

4.8

5.3

6.4

7.5

8.8

10

A Class

Min

0.98

1.28

1.58

1.88

2.28

2.68

3.35

3.85

4.65

5.15

6.22

7.32

8.62

9.82

Max

1.22

1.52

1.82

2.12

2.52

2.92

3.65

4.15

4.95

5.45

6.56

7.68

8.98

10.18

B Class

Min

-

-

-

-

-

2.6

3.26

3.76

4.56

5.06

6.11

7.21

8.51

9.71

Max

-

-

-

-

-

3

3.74

4.24

5.04

5.54

6.69

7.79

9.09

10.29

k1

Min



0.7

0.9

1.1

1.3

1.6

1.9

2.28

2.63

3.19

3.54

4.28

5.05

5.96

6.8

r

Min



0.1

0.1

0.1

0.1

0.1

0.2

0.2

0.25

0.25

0.4

0.4

0.6

0.6

0.6

s

Max=Nominal



3.2

4

5

5.5

6

7

8

10

11

13

17

19

22

24

A Class

Min

3.02

3.82

4.82

5.32

5.82

6.78

7.78

9.78

10.73

12.73

16.73

18.67

21.67

23.67

B Class

Min

-

-

-

-

-

6.64

7.64

9.64

10.57

12.57

16.57

18.48

21.16

23.16

d

(M18)

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)



P

Pitch



2.5

2.5

2.5

3

3

3.5

3.5

4

4

4.5

4.5

5

5



a

Max



7.5

7.5

7.5

9

9

10.5

10.5

12

12

13.5

13.5

15

15



c

Min



0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.2

0.3

0.3

0.3

0.3

0.3



Max



0.8

0.8

0.8

0.8

0.8

0.8

0.8

0.8

1

1

1

1

1



da

Max



20.2

22.4

24.4

26.4

30.4

33.4

36.4

39.4

42.4

45.6

48.6

52.6

56.6



dw

A Class

Min

25.3

28.2

30

33.6

-

-

-

-

-

-

-

-

-



B Class

Min

24.8

27.7

29.5

33.2

38

42.7

46.5

51.1

55.9

59.9

64.7

69.4

74.2



e

A Class

Min

30.14

33.53

35.72

39.98

-

-

-

-

-

-

-

-

-



B Class

Min

29.56

32.95

35.03

39.55

45.2

50.85

55.37

60.79

66.44

71.3

76.95

82.6

88.25



k

Nominal



11.5

12.5

14

15

17

18.7

21

22.5

25

26

28

30

33



A Class

Min

11.28

12.28

13.78

14.78

-

-

-

-

-

-

-

-

-



Max

11.72

12.72

14.22

15.22

-

-

-

-

-

-

-

-

-



B Class

Min

11.15

12.15

13.65

14.65

16.65

18.28

20.58

22.08

24.58

25.58

27.58

29.58

32.5



Max

11.85

12.85

14.35

15.35

17.35

19.12

21.42

22.92

25.42

26.42

28.42

30.42

33.5



k1

Min



7.8

8.5

9.6

10.3

11.7

12.8

14.4

15.5

17.2

17.9

19.3

20.9

22.8



r

Min



0.6

0.8

0.8

0.8

1

1

1

1

1

1.2

1.2

1.6

1.6



s

Max=Nominal



27

30

32

36

41

46

50

55

60

65

70

75

80



A Class

Min

26.67

29.67

31.61

35.38

-

-

-

-

-

-

-

-

-



B Class

Min

26.15

29.16

31

35

40

45

49

53.8

58.8

63.1

68.1

73.1

78.1



Detail drawing

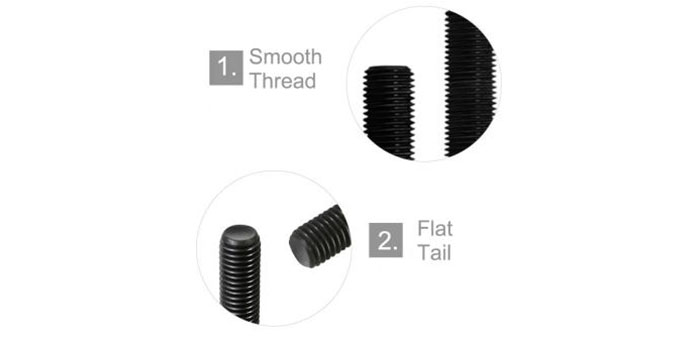

Grade 8.8 DIN933 Hex Head Bolt Black Oxide DIN 9332
Grade 8.8 DIN933 Hex Head Bolt Black Oxide DIN 9333

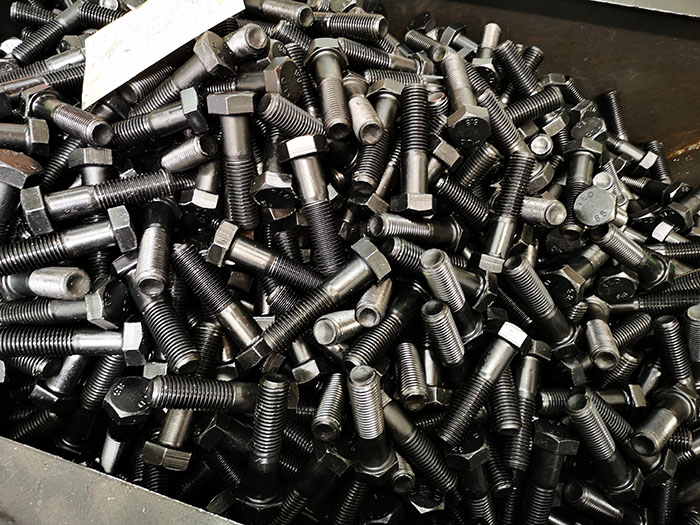

Grade 8.8 DIN933 Hex Head Bolt Black Oxide DIN 9335

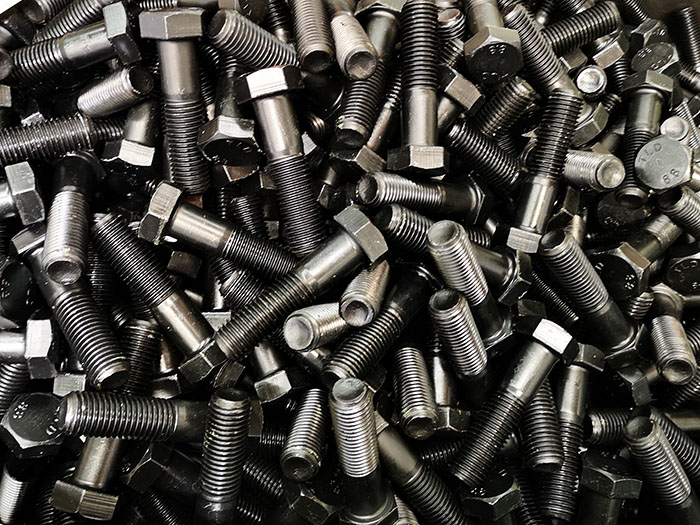

Grade 8.8 DIN933 Hex Head Bolt Black Oxide DIN 9334

Packaging and delivery

Packaging and delivery
Packaging and delivery1
Packaging and delivery2
Packaging and delivery4
Packaging and delivery6
Packaging and delivery5
Packaging and deliver3
Packaging and delivery4
Packaging and delivery3

About us

Handan Yongnian Hongji Machinery Parts Co., Ltd.

Established in 2012, a professional Fasteners. We are focused on BOLT, NUT, SCREW, ANCHOR AND WASHER fasteners, as well as the casting parts.
In recent years, we have expanded businesses to over 20 countries, Vietnam, Thailand, Indonesia, Malaysia, Bangladesh, Pakistan, Kuwait, UAE, SAU, South Africa, Germany, Russia, the United States, Canada, Mexico, Columbia, and so on.

Yongnian Hongji
ce3
cer2
ce1
ce6
ce5
ce4

* The following diagram identifies the different trade incoterms. Please select the one you prefer.

Yongnian Hongji1

FAQ

You are a manufacturing company or trading company?
We are a fastener manufacturer, and our main products are Bolt, Nut, Screw, Anchor and Washer fastners and casting parts. Meanwhile, we are also a fastener trader with many years experiences in domestic and international market.

What quote do you offer?
We offer EXW, FCA(Guangzhou, Foshan, Yiwu, Shanghai, Wenzhou, Urumchi, and many other cities), FOB, CIF, CFR, DAP, DDP sea shipment terms.
