DIN 975 ASME B 18.31 Stainless Steel SUS 304 316 Thread Rod 1m 2m 3m Customized Length

DIN 975 ASME B 18.31 Stainless Steel SUS 304 316 Thread Rod 1m 2m 3m Customized Length

Short Description:

Product Name: Stainless Steel Thread Rod

Key Words: DIN975, ASME B18.31.2, ASME B18.31.3, Full Thread Rod,

Size: M5-M52, 4#-5″

Material: SUS304, SUS316

Strength Grade: A2-70, A4-80

Surface Treatment: Plain stainless steel

Thread Length: Full  Thread

Packing: Pallets, Bundle with bag, Wooden case

Application: construction, new energy industry, auto industry, oil industry, etc.

Other Features: Offer customized head mark


Product Detail

Product Tags

Description

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

DIN975

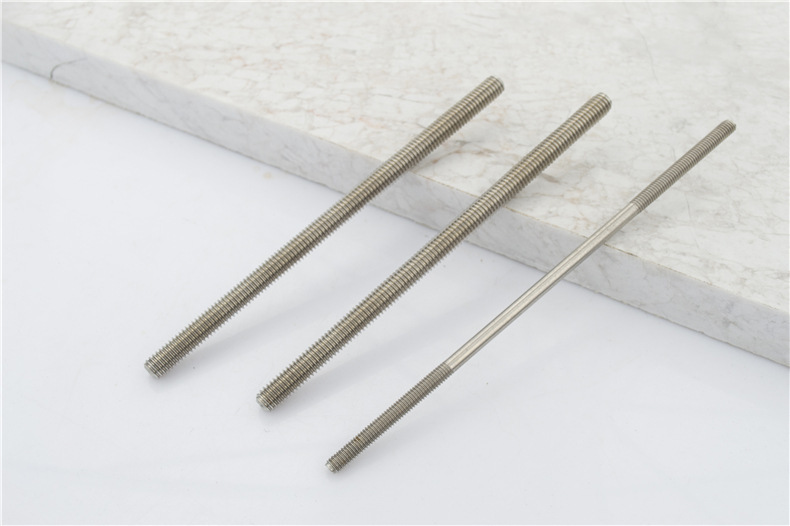

Stainless Steel Thread Rod 2
Stainless Steel Thread Rod factory
DIN975 thread rod drawings
Thread Dia
d
M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10 M12 (M14) M16 (M18)
P Coarse Thread
Fine Thread
Fine Thread
L ±10
Weight/kpcs≈kg
0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5
/ / / / / / / 1 1.25 1.25 1.5 1.5 1.5
/ / / / / / / / 1 1.5 / / /
1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
18.7 30 44 60 78 124 177 319 500 725 970 1330 1650
Thread Dia
d
M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48 (M52)
P Coarse Thread
Fine Thread
Fine Thread
L ±10
Weight/kpcs≈kg
2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5 5
1.5 1.5 2 2 2 2 3 3 3 3 3 3
/ / / / / / / / / / / /
1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
2080 2540 3000 3850 4750 5900 6900 8200 9400 11000 12400 14700



ASME B 18.31.2

ASME B 18.31.2 Thread rod drawings
Thread Dia
d
1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8
d
PP UNC
UNF
8UN
U UNC Min
Max
UNF Min
Max
8UN Min
Max
0.2500 0.3125 0.3750 0.4375 0.5000 0.5625 0.6250 0.7500 0.8750 1.0000 1.1250 1.2500 1.3750
20 18 16 14 13 12 11 10 9 8 7 7 6
28 24 24 20 20 18 18 16 14 12 12 12 12
- - - - - - - - - - 8 8 8
0.050 0.056 0.063 0.072 0.077 0.084 0.091 0.100 0.111 0.125 0.143 0.143 0.167
0.100 0.111 0.125 0.143 0.154 0.167 0.182 0.200 0.222 0.250 0.286 0.286 0.333
0.036 0.042 0.042 0.050 0.050 0.056 0.056 0.063 0.072 0.084 0.084 0.084 0.084
0.071 0.083 0.083 0.100 0.100 0.111 0.111 0.125 0.143 0.167 0.167 0.167 0.167
- - - - - - - - - - 0.125 0.125 0.125
- - - - - - - - - - 0.250 0.250 0.250
Thread Dia
d
1-1/2 1-5/8 1-3/4 1-7/8 2 2-1/4 2-1/2 2-3/4 3 3-1/4 3-1/2 3-3/4 4
d
PP UNC
UNF
8UN
U UNC Min
Max
UNF Min
Max
8UN Min
Max
1.5000 1.6250 1.7500 1.8750 2.0000 2.2500 2.5000 2.7500 3.0000 3.2500 3.5000 3.7500 4.0000
6 - 5 - 4 1/2 4 1/2 4 4 4 4 4 4 4
12 - - - - - - - - - - - -
8 8 8 8 8 8 8 8 8 8 8 8 8
0.167 - 0.200 - 0.222 0.222 0.250 0.250 0.250 0.250 0.250 0.250 0.250
0.333 - 0.400 - 0.444 0.444 0.500 0.500 0.500 0.500 0.500 0.500 0.500
0.084 - - - - - - - - - - - -
0.167 - - - - - - - - - - - -
0.125 0.125 0.125 0.125 0.125 0.125 0.125 0.125 0.125 0.125 0.125 0.125 0.125
0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250 0.250



ASME B 18.31.3

ASME B 18.31.3 Thread rod drawings
Size
4# 5# 6# 8# 10# 12# 1/4 5/16 3/8 7/16 1/2 9/16
d Nominal Dia
PP UNC
8UN
UNF
Acme
0.1120 0.1250 0.1380 0.1640 0.1900 0.2160 0.2500 0.3125 0.3750 0.4370 0.5000 0.5620
40 40 32 32 24 24 20 18 16 14 13 12
- - - - - - - - - - - -
48 44 40 36 32 28 28 24 24 20 20 18
- - - - - - 16 14 12 12 10 -
Size
5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 1-5/8 1-3/4 1-7/8 2
d Nominal Dia
PP UNC
8UN
UNF
Acme
0.6250 0.7500 0.8750 1.0000 1.1250 1.2500 1.3750 1.5000 1.6250 1.7500 1.8750 2.0000
11 10 9 8 7 7 6 6 - 5 - 4.5
- - - - 8 8 8 8 8 8 8 8
18 16 14 14 12 12 12 12 - - - -
8 6 6 5 5 5 4 4 - 4 - 4
Size
2-1/4 2-1/2 2-3/4 3 3-1/4 3-1/2 3-3/4 4 4-1/2 5
d Nominal
PP UNC
8UN
UNF
Acme
2.2500 2.5000 2.7500 3.0000 3.2500 3.5000 3.7500 4.0000 4.5000 5.0000
4.5 4 4 4 4 4 4 4 - -
8 8 8 8 8 8 8 8 - -
- - - - - - - - - -
3 3 3 2 - 2 - 2 2 2

Detail description

DIN 975 SUS 316 Thread Rod
SUS304 UNC Thread Rod China supplier low price

Please let us know the specific sizes you need so that we could offer the best solutions.



DIN975 Thread Rod, commonly known as the lead screw. It has no head, a fastener composed of a threaded column of the whole tooth thread.

Unlike the double stud, the teeth are not limited to thread length and are easy to use. DIN975 thread bar is similar to DIN976 except DIN976 is a shorter length of thread bar.

The most commonly used length is 1m, 2m, 3m. Of course there are also many customized length from 50mm to 6000mm. It can be used in many construction site, cases in all the construction projects, is the most widely used fasteners.

The material has carbon steel, stainless steel, copper, brass and so on. And the surface can be black oxide, Zinc plated, HDG, Plain, Teflon and so on. According to its strength grade, it has grade 4.8, 5.8, 6.8, 8.8, 10.9, A2-70 and A4-80. The metric size standard meets DIN975 and the imperial size standard meets ASME B18.31.2 and ASME B18.31.3. It's different from ASTM A193 B7 generally whatever its length and its material.

The most important factor effecting its price is the unit weight. Different material diameter leads different weight, leading different prices.
