Foundation Anchor Bolt L Shape Bolt Carbon steel Stainless Steel

Foundation Anchor Bolt L Shape Bolt Carbon steel Stainless Steel

Short Description:

Product Name: Foundation anchor bolt

Key Words: L shape bolt, anchor bolt for construction, China factory L anchor bolt

Size: M6-M72

Material: Q195, Q235, 35K, 45#, SUS304, SUS316

Strength Grade: Grade 4.8, 5.8, 6.8, 8.8, A2-70, A4-80

Surface Treatment: carbon steel zinc plated, HDG, stainless steel

Thread Length: Half  Thread

Packing: Pallets, Bundle with bag.

Application: construction, new energy industry, auto industry, etc.

Other Features: Offer customized head mark

Product Detail

Product Tags


QUICK Response

QUICK Quotation

QUICK Delivery


10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

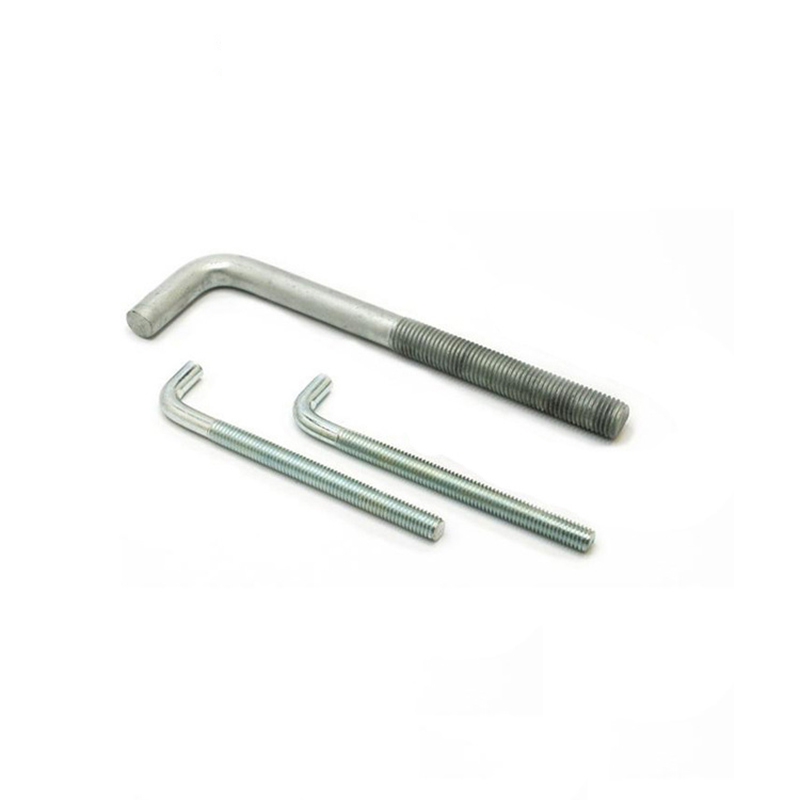

L shape foundation anchor bolt 10

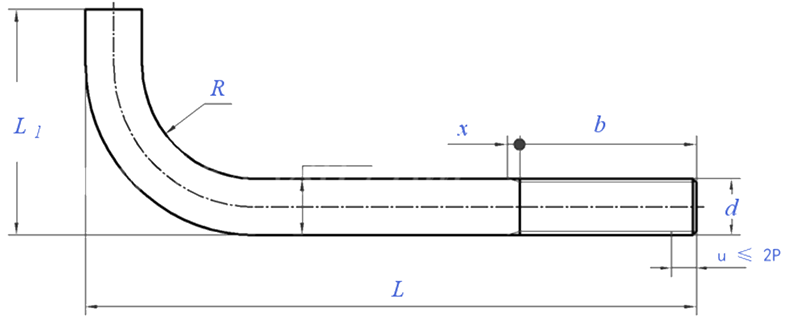

Foundation Anchor Bolt Drawings 1
Thread Dia
M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72
P Pitch
b deviation value(+2P,0)
x Max
1.25 1.5 1.75 2 2.5 3 3.5 4 4.5 5 5.5 6 6
31 36 40 50 58 68 80 94 106 120 140 160 180
32 40 48 64 80 96 120 144 168 192 224 256 288
16 20 24 32 40 48 60 72 84 96 112 128 144
3.2 3.8 4.3 5 6.3 7.5 9 10 11 12.5 14 15 15

Detail description

HDG L shape foundation anchor bolt 1

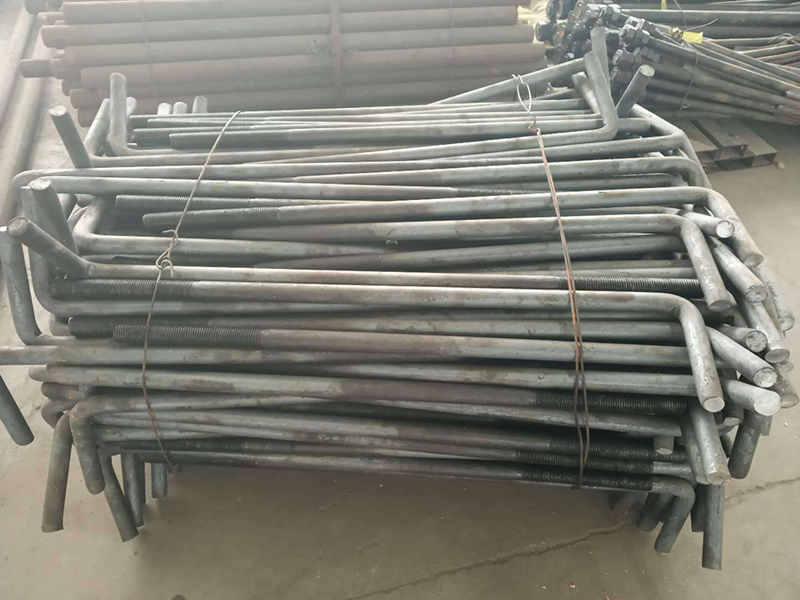

L shape foundation anchor bolt 16

Please let us know the specific sizes you need so that we could offer the best solutions.


When the mechanical member is installed on a concrete foundation, the J-shaped and L-shaped end of the bolt is embedded in the concrete for use.
The tensile capacity of the anchor bolt is the tensile capacity of the round steel itself, the size is equal to the section area multiplied by the allowable stress value (Q235B:140MPa, 16Mn or Q345:170MPA) is the allowable tensile capacity of the design.
Anchor bolts are generally made of Q235 steel, which is light round. Rebar (Q345) strength, do not make the nut of the wire buckle light round easy. For the optical anchor bolt, the burial depth is generally 25 times of its diameter, and then make a 90-degree bending hook about 120mm long. If the bolt diameter is very large (such as 45mm) and the buried depth is too deep, you can weld the square plate at the end of the bolt, that is, make a big head (but there are certain requirements). The buried depth and bent hook are to ensure the friction between the bolt and the foundation, so that the bolt will not be pulled out.



Packaging and delivery
Packaging and delivery1
Packaging and delivery2
Packaging and deliver3
L shape foundation anchor bolt
